Specification of hoses

Company:
Prepared by:
Phone:
Fax:
e-mail:



Please complete the section unconditionally

Medium*   Nominal diameter:

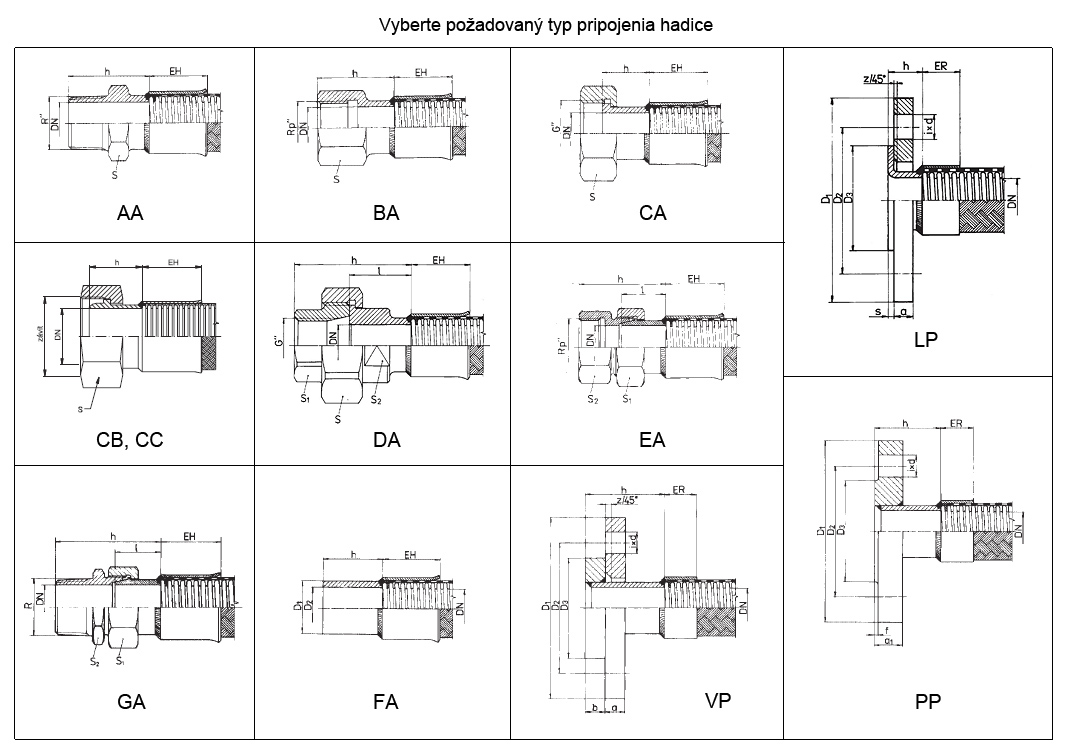

Temperature Min. Max.   Type of connection: 1st fitting 2nd fitting
- medium* °C - Type/ thread* /
other: 		/
other:
- ambient °C

Pressure

 Min. Max.   - material
- Inside* MPa Total length*
- Outside MPa Quantity*

* data are required



Request for outside protection:
Protection against abrasion Thermal protection Protection against breakage



Please fill it if you know

Type of movement and amplitude.:
External influence/ use:
Documentation requirement:
