Hydraulic hoses
General information Types of hydraulic hoses Fittings for hydraulic hose
Data sheet for specification of hoses Catalogue of hydraulic hoses and fittings
Types of hydraulic hoses
Company KOHAFLEX at manufacture of high-pressure, hydraulic hoses with fittings uses the following types of rubber hoses:
 |
Hose with one braid (example:GH1SN, GH1SC, GH1TE) | |
 |

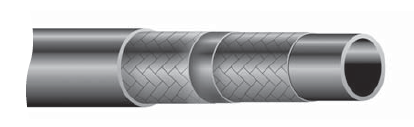

Hose with two braids (example:GH2SN, GH2SC, GH2TE) | |
 |
Hose with four braids (example:GH4SP, GH4SH) |
|
|
Marking of hose |
Corresponding |
Reinforcement of hose |
Delivered diameters |
Max. pressure |
|---|---|---|---|---|---|
|
Rubber |
GH1SN |
EN853, SAE100 R1AT |
1x oceľový oplet |
DN6 up to DN50 |
225bar (DN6) |
|
GH1ST |
EN853, SAE100 R1A |
1x steel braid |
DN6 up toDN50
|
225bar (DN6) |
|
|
GH1SC |
EN857 |
1x steel braid |
DN6 up to DN50 |
225bar (DN6) |
|
|
GH2SN |
EN853, SAE100 R2AT |
2x steel braid |
DN6 up toDN50 |
400bar (DN6) |
|
|
GH2ST |
EN853, SAE100 R2A |
2x steel braid |
DN6 up to DN50 |
400bar (DN6) |
|
|
GH2SC |
EN857 |
2x steel braid |
DN6 up to DN50 |
400bar (DN6)
|
|
|
GH4SP |
EN856 |
4x steel braid |
DN6 up to DN50 (except DN8) |
525bar (DN6)
|
|
|
GH4SH |
EN856 |
4x steel braid |
DN20 up to DN50 |
525bar (DN20)
|
|
|
GH1TE |
EN854, SAE100 R6 |
1x textile braid |
DN6 up to DN25 |
25bar (DN6) |
|
|
GH2TE |
EN854
|
2x textile braid |
DN6 up to DN25 |
75bar (DN6) |
|
|
GH3TE |
EN854, SAE100 R3 |
3x textile braid |
DN6 up to DN100 |
145bar (DN6) |
|
|
Thermoplastic |
PH OL7 |
EN855, SAE100 R7 |
1x braid from polyester yarns |
DN6 up to DN25 |
200bar (DN6) |
|
PH2040N |
EN853, EN857, SAE100 R1 |
1x steel braid |
DN6 up to DN32 |
300bar (DN6) |
|
|
PH2370N |
SAE100 R2 |
2x steel braid |
DN6 up to DN25 |
400bar (DN6) |
